ofxOpenBciWifi

OpenFrameworks addon for interfacing with OpenBCI via the WiFi shield

• Tested with 2 Cyton boards simultaneously streaming data
• Developed to works with any number of OpenBCI boards

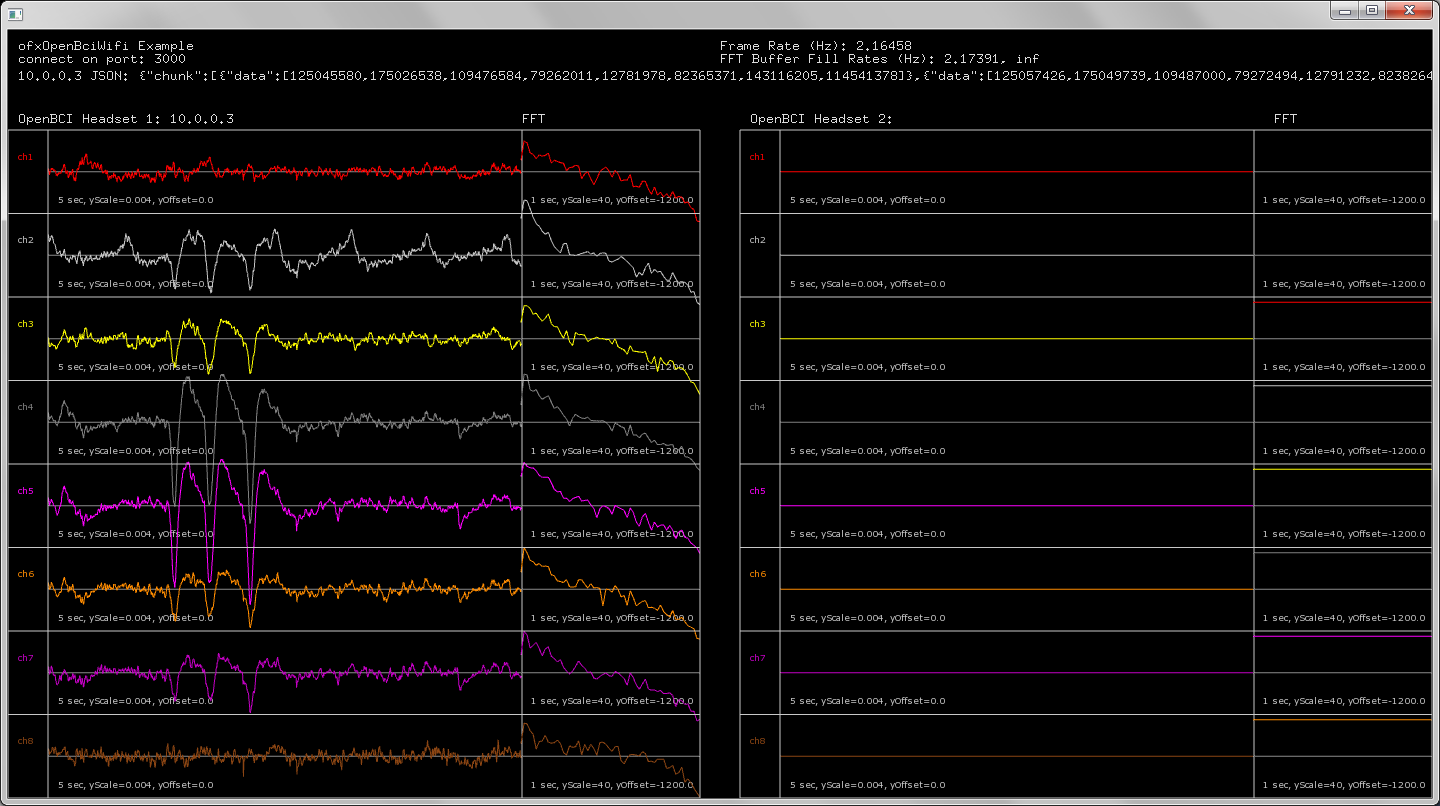

ofxOpenBciWifi-example screenshot with 1 connected cyton board

Requirements:

ofxAddons for ofxOpenBciWifi:

• ofxNetwork (built in)
• ofxBiquadFilter https://github.com/dzlonline/ofxBiquadFilter
• ofxFft https://github.com/kylemcdonald/ofxFft
• ofxJSON https://github.com/jeffcrouse/ofxJSON
• ofxThreadedLogger https://github.com/produceconsumerobot/ofxThreadedLogger

Additional ofxAddons for openBciWifi-example:

• ofxOscilloscope https://github.com/produceconsumerobot/ofxOscilloscope

Instructions:

• Follow OpenBCI WiFi getting started guide to get your OpenBCI connected to your computer and streaming data to the OpenBCI_GUI software. http://docs.openbci.com/Tutorials/03-Wifi_Getting_Started_Guide#wifi-getting-started-guide-prerequisites
• Close the OpenBCI_GUI software and start the openBciWifi-example
• Use Postman to send an HTTP post to the OpenBCI WiFi shield to establish a TCP connection
• Use postman to send an HTTP get to the OpenBCI WiFi shield to start streaming data

-- See API for full documentation https://app.swaggerhub.com/apis/pushtheworld/openbci-wifi-server/1.3.0
