ofxSwatches

Color swatch libraries for openFrameworks with CMYK support, grey value (perceived luminosity %), color harmonies, JSON persistence, and an ImGui SwatchesPanel.

Features

• SwatchColor — RGB, CMYK (0–100), and HSB construction; spot-color flag
• Color harmonies — Complementary, Triadic, Tetradic, Analogous, Split-Complementary, Monochromatic
• Grey value — WCAG relative luminance 0–100 %; neutral-grey detection; toGreyEquivalent()
• Contrast — WCAG contrast ratio; meetsContrastAA / meetsContrastAAA helpers
• SwatchLibrary — named palettes; add/remove/reorder; harmony generation
• JSON persistence — saveLibrary / loadLibrary, format v3 (solids + portable gradients; v2 still loads)
• Gradient swatches — book entries with stops/type/angle; chips draw ramps; apply via document paints

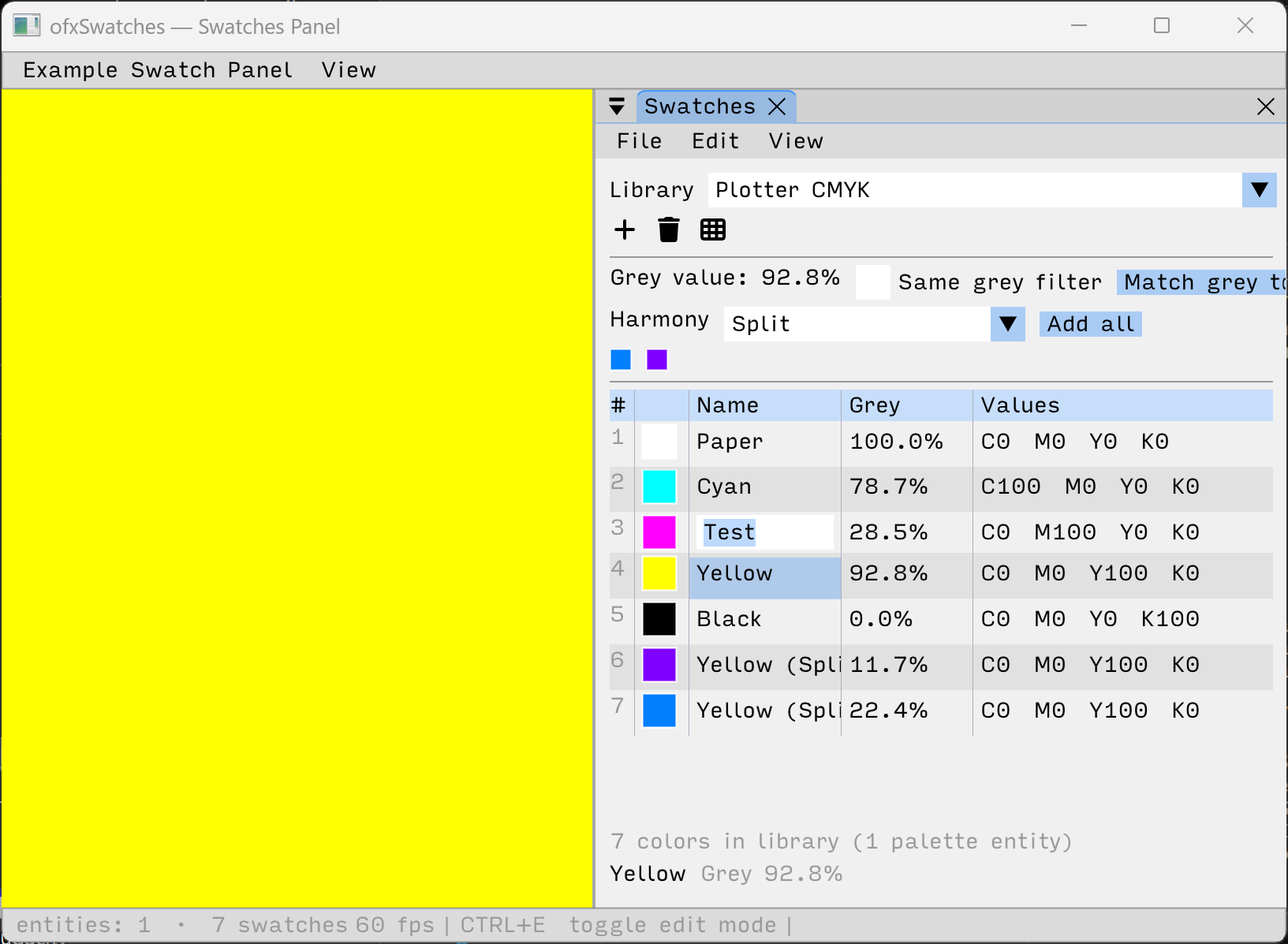

• SwatchesPanel — Layers-style ImGui panel (requires ofxImGuiStyle); New gradient; Document Paints click-to-apply
• DualColorTarget — Primary/Secondary slots hold solid or gradient; host labels Fill/Stroke or FG/BG
• Dual colour chips — Illustrator/Photoshop-style stacked swatches (ramp when gradient)
• ECS — ecs::swatch_library_component extends SwatchLibrary via ofxEnTTKit

Dual colour target

ofxSwatches::DualColorTarget colors;
colors.primaryLabel = "Fill";      // or "Foreground"
colors.secondaryLabel = "Stroke";  // or "Background"
colors.setActive(ofxSwatches::ColorSlot::Primary);

// Toolbar / properties
ofxSwatches::drawDualColorChips(colors, ImVec2(28, 28));

// Swatches panel writes the active slot on click
panel.setColorTarget(&colors);
panel.setOnSwatchSelected([&](const ofxSwatches::SwatchColor& s) {
    // Ensure a shared document paint, then assign fill/stroke entity
    auto paint = ofxSwatches::ensureDocumentPaintFromSwatch(reg, s);
    // … applyFillPaintToSelection / applyStrokePaintToSelection …
});

Dependencies

From addon_config.mk (Windows and Linux):

• ofxImGui, ofxImGuiStyle
• ofxEnTT, ofxEnTTKit, ofxDocumentKit (document paints / ECS swatch library)

operator ofColor() / previewColor()

SwatchColor converts to ofColor via previewColor(), not the raw solid channel alone:

• Solid swatches → the stored RGB colour.
• Gradient swatches → a midpoint (chip preview) colour suitable for UI and contrast helpers.

Use previewColor() explicitly when you need the same value as the conversion operator. Grey-value / contrast helpers also use previewColor().

Quick start

#include "ofxSwatches.h"

ofxSwatches::SwatchLibrary library("My Palette");

// Add colours
library.addCMYK(100, 0, 0, 0, "Cyan");
library.addCMYK(0, 100, 0, 0, "Magenta");
library.addColor(ofColor(255, 87, 34), "Deep Orange");
library.addColor(ofxSwatches::SwatchColor::fromHSB(191, 180, 200, "Violet")); // 0–255 hue

// Save to bin/data/My Palette.json
ofxSwatches::saveLibrary(library);

// Load from bin/data/My Palette.json
ofxSwatches::loadLibrary(library);

// Or supply an explicit path
ofxSwatches::saveLibrary(library, "/path/to/palette.json");
ofxSwatches::loadLibrary(library, "/path/to/palette.json");

SwatchColor API

// Construction
SwatchColor c = SwatchColor::fromCMYK(0, 100, 0, 0, "Magenta");
SwatchColor d = SwatchColor::fromHSB(128, 200, 220, "Teal"); // OF 0–255 range
SwatchColor e(ofColor(255, 87, 34), "Deep Orange");

// Properties
c.getDisplayName();       // "Magenta" — or "C0 M100 Y0 K0" if unnamed
c.getCMYK();              // glm::vec4 (0–100 each)
c.getGreyValuePercent();  // WCAG relative luminance 0–100 %
c.getGreyValueSimple();   // Fast perceived grey 0–100 %
c.isNeutralGrey();        // true when R ≈ G ≈ B
c.toGreyEquivalent();     // desaturated ofColor at same luminance

// Contrast
float ratio = ofxSwatches::contrastRatio(c.color, ofColor::white); // 1.0–21.0
bool ok = ofxSwatches::meetsContrastAA(ratio);

// Harmony (returns new SwatchColors, does not modify c)
SwatchColor comp = c.getComplementary();
auto triad      = c.getTriadic();           // std::vector<SwatchColor> (2)
auto mono       = c.getMonochromatic(5);    // 5 tints/shades

SwatchLibrary API

ofxSwatches::SwatchLibrary lib("My Library");

lib.addCMYK(0, 0, 0, 100, "Black");
lib.addColor(ofColor::red, "Red");
lib.addGradient("Fade");         // portable two-stop gradient swatch
lib.count();                     // int
lib.getColor(0);                 // SwatchColor (nullptr if out of range)
lib.getByName("Red");            // SwatchColor (nullptr if not found)
lib.hasColor("Red");             // bool
lib.removeColor(0);              // by index
lib.removeColor("Red");          // by name
lib.reorderColor(0, 3);         // drag-reorder

// Append harmony colors derived from swatch at index
lib.generateHarmonyFrom(0, ofxSwatches::ColorHarmony::Triadic);

// Find swatches with similar luminance (±tolerance %)
std::vector<int> matches = lib.findSameGreyValue(50.0f, 2.0f);

JSON format (v3)

kind defaults to "solid" when missing (v2 libraries load unchanged). Gradient entries carry stops and params; r/g/b/a remain a chip preview.

{
  "libName": "My Library",
  "version": 3,
  "richBlack": { "c": 60, "m": 40, "y": 40, "k": 100 },
  "Swatches": [
    { "kind": "solid", "name": "Cyan", "type": 1, "c": 100, "m": 0, "y": 0, "k": 0,
      "r": 0, "g": 255, "b": 255, "a": 255, "spot": false, "spotInk": "" },
    { "kind": "gradient", "name": "Fade", "type": 0,
      "r": 128, "g": 128, "b": 128, "a": 255,
      "gradType": 0, "interp": 0, "spread": 0, "angle": 90,
      "center": [0.5, 0.5], "innerRadius": 0, "outerRadius": 1, "numSteps": 0,
      "stops": [
        { "position": 0, "color": [0, 0, 0, 1], "intensity": 1 },
        { "position": 1, "color": [1, 1, 1, 1], "intensity": 1 }
      ]
    }
  ]
}

Applying a swatch in an editor: ensureDocumentPaintFromSwatch → assign the paint entity on the selection (do not always createSolidPaint).
