ofxPlotterKit

Optional UI kit for ofxPlotter: reusable Dear ImGui windows and panels for plotter workflows.

Stable ImGui docking ids live in kit/PlotterKitUiIds.h

Windows

Registerable (plotter::kit::registerWindow)

These expose name() / isVisible() / draw(bool&):

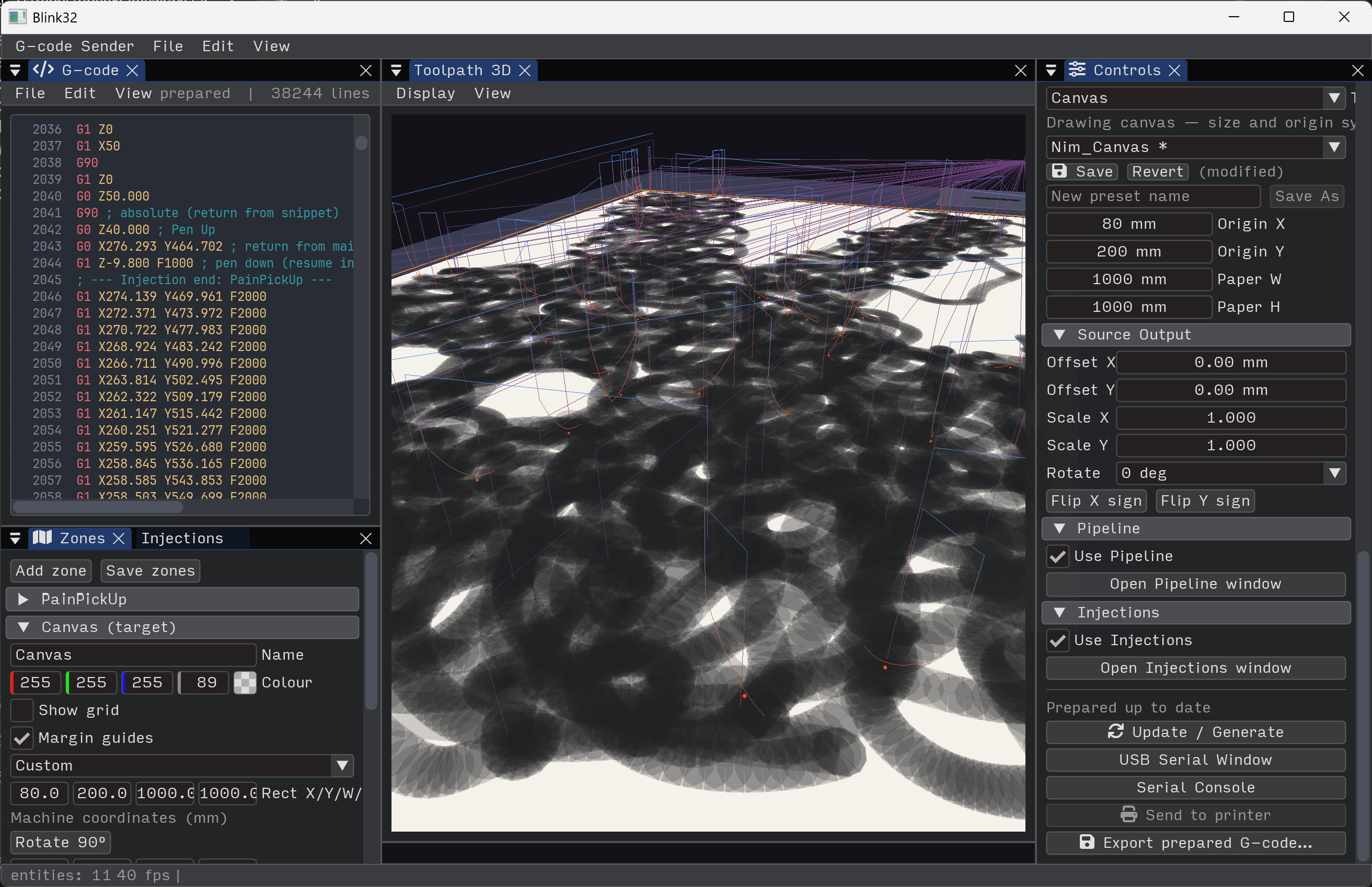

• plotter::kit::PlotterPrintPreviewPanel — G-code print preview: FBO / ImGui

viewport, transport, G0 travel overlay, companion actions. Use standalone draw() / registerWindow, or embed via drawScene() / drawHeader() in a viewport or main 2D view.

• plotter::kit::PlotterZonesPanel — machine zone editor/inspector. Registry

and selection via setters/callbacks. Optional setImGuiWindowTitle.

• plotter::kit::PlotterPipelinePanel — post-processor chain editor

(plotproc::PlotPipeline) with optional last-run report and preset footer. Default Begin title: Pipeline###plotter_kit.pipeline.

• plotter::kit::PlotterInjectionsPanel — injection rules (interval / at start /

at end), snippet catalog, reorderable list. Default title: Injections###plotter_kit.injections. Use setPenZProviders for live pen Z.

• plotter::kit::PlotterPlaybackPanel — toolpath playhead / scrub window with

G-code line sync callbacks. Default title: Playback###plotter_kit.playback.

• plotter::kit::PlotterJogWindow — manual XY/Z jog, pen up/down, feed override,

pause/stop, and safe home.

• plotter::kit::PlotterSerialWindow — use registerSerialWindows for USB Serial

+ Serial Console (or registerWindow for both with shared opts).

Host-mounted panels

• plotter::kit::GcodeGeneratorPanel — Generator window (draw(title, visible)).

Title id: Generator###plotter_kit.gcode_gen.

• plotter::kit::Toolpath3DView — 3D toolpath viewport via

Runtime::addViewportWindow("Toolpath 3D") from setup().

Supporting (not standalone windows)

• plotter::kit::GcodeExportSession — async prepare/export cache.
• plotter::kit::PlotterSnippetCatalog — built-in + user snippets.
• plotter::kit::PlotterEditorToolbar, document/project helpers, presets.

#include "ofxPlotterKit.h"

plotter::kit::PlotterJogWindow jogWindow;
jogWindow.setEngine(&plotDoc);
jogWindow.setSender(&sender);
jogWindow.setPrefs(&machinePrefs);

plotter::kit::PlotterSerialWindow serialWindow;
serialWindow.setSender(&sender);
serialWindow.setPrefs(&prefs);
serialWindow.refreshDeviceList();
serialWindow.syncSelectionFromPrefs();

plotter::kit::registerWindow(ofkitty::runtime(), jogWindow);
plotter::kit::registerSerialWindows(ofkitty::runtime(), serialWindow);
plotter::kit::registerWindow(ofkitty::runtime(), pipelinePanel);
plotter::kit::registerWindow(ofkitty::runtime(), injectionsPanel);

Dependencies

ofxPlotter, ofxGrbl, ofxKit, ofxImGuiTextEdit
