ofxEdyn

Real-time ECS physics for openFrameworks, powered by Edyn.



Edyn (_Entity Dynamics_) is a multi-threaded rigid body physics engine organised entirely as an ECS using EnTT. Because rigid bodies are just components on entt::entity handles, they compose naturally with ofxEnTTKit and ofxKit.

Features

• Dynamic, static and kinematic rigid bodies
• Shapes: box, sphere, capsule, cylinder, plane, convex polyhedron, triangle mesh
• Constraints: distance, hinge, point, CV-joint, cone, generic
• Broad-phase DBVT + narrow-phase SAT collision detection
• Raycasting and AABB queries
• Parallel island simulation
• Networked physics (client/server extrapolation)
• Sequential-impulse solver with warm-starting and proper restitution propagation

Dependencies

Addon	Role
ofxEnTT	Provides the EnTT headers used by Edyn

Both addons live in the same addons/ folder of your openFrameworks installation.

Edyn submodule

Edyn's source is included as a git submodule at libs/edyn/.

The submodule uses sparse checkout so only include/, src/ and cmake/ are checked out — Edyn's test/ and examples/ directories never land on disk and can't accidentally be compiled.

First-time setup

git clone https://github.com/ofKitty/ofxEdyn.git
cd ofxEdyn
bash setup.sh

setup.sh runs git submodule update --init then configures sparse checkout in one step.

Updating Edyn

cd libs/edyn && git pull origin master && cd ..
git add libs/edyn && git commit -m "chore: bump edyn submodule"
sparse-checkout settings are preserved on pull

Component overlap (what duplicates, what doesn't)

ecs:: side	edyn:: side	Notes
Shape	ecs::primitive_component (BOX, SPHERE …)	edyn::box_shape, edyn::sphere_shape …	Intentional duplicate. ecs::primitive_component is the source of truth. attachPhysics() copies dimensions into Edyn's internal shape component, which its collision systems require. Resize via ecs::primitive_component and call attachPhysics again.
Position	ecs::LocalTransform	edyn::position + edyn::present_position	Not a conflict — Edyn owns the live simulation state, syncToLocalTransform() writes the interpolated result back to ecs::LocalTransform each frame.
Material	ecs::material_component	edyn::material	No overlap. ecs:: = render (diffuse, specular). edyn:: = physics surface (restitution, friction). Different structs, different domains.
Body desc	ecs::rigidbody_component	edyn::dynamic_tag, edyn::mass, edyn::linvel …	ecs::rigidbody_component is inspector-facing (initial values). attachPhysics() reads it once; live simulation state lives in Edyn's components.

Quick-start

#include "ofxEdyn.h"

// ---- ofApp members ----
entt::registry  registry;
ofxEdyn         physics;

// ---- setup() ----
physics.setup(registry);

// Optional: run synchronously (single-threaded, easier to debug)
// edyn::init_config cfg;
// cfg.execution_mode = edyn::execution_mode::sequential;
// physics.setup(registry, cfg);

// Static ground
ofxEdyn::makeStaticPlane(registry);

// Dynamic box at (0, 5, 0)
ofxEdyn::makeBox(registry, glm::vec3(0, 5, 0));

// ---- update() ----
physics.update(registry);

// ---- draw() ----
ofxEdyn::drawDebug(registry);   // wire-frame boxes + spheres

// ---- exit() ----
physics.exit(registry);

Advanced: raw Edyn API

ofxEdyn.h is a thin convenience layer — you can call the Edyn API directly at any time:

// Component-level rigidbody definition
auto def           = edyn::rigidbody_def{};
def.kind           = edyn::rigidbody_kind::rb_dynamic;
def.position       = {0, 4, 0};
def.shape          = edyn::capsule_shape{0.3f, 0.8f};
def.mass           = 2.0f;
def.material       = edyn::material{0.25f, 0.6f};  // restitution, friction
def.gravity        = edyn::gravity_earth;
auto entity        = edyn::make_rigidbody(registry, def);

// Refresh a value you changed directly on a component
registry.patch<edyn::linvel>(entity, [](auto& v){ v = {0, 5, 0}; });
edyn::refresh<edyn::linvel>(registry, entity);

Type conversions

// glm ↔ edyn
edyn::vector3    ev = ofxEdyn::toEdyn(glm::vec3(1, 2, 3));
glm::vec3        gv = ofxEdyn::toGlm(ev);

edyn::quaternion eq = ofxEdyn::toEdyn(glm::quat(...));
glm::quat        gq = ofxEdyn::toGlm(eq);

build_settings.h

The file libs/edyn/include/edyn/build_settings.h replaces the header that CMake normally generates. Edit it to toggle:

Define	Effect
EDYN_DOUBLE_PRECISION	Use double instead of float for all scalar math
EDYN_DISABLE_PROFILING	Strip profiling instrumentation (on by default)

Examples

Folder	Description

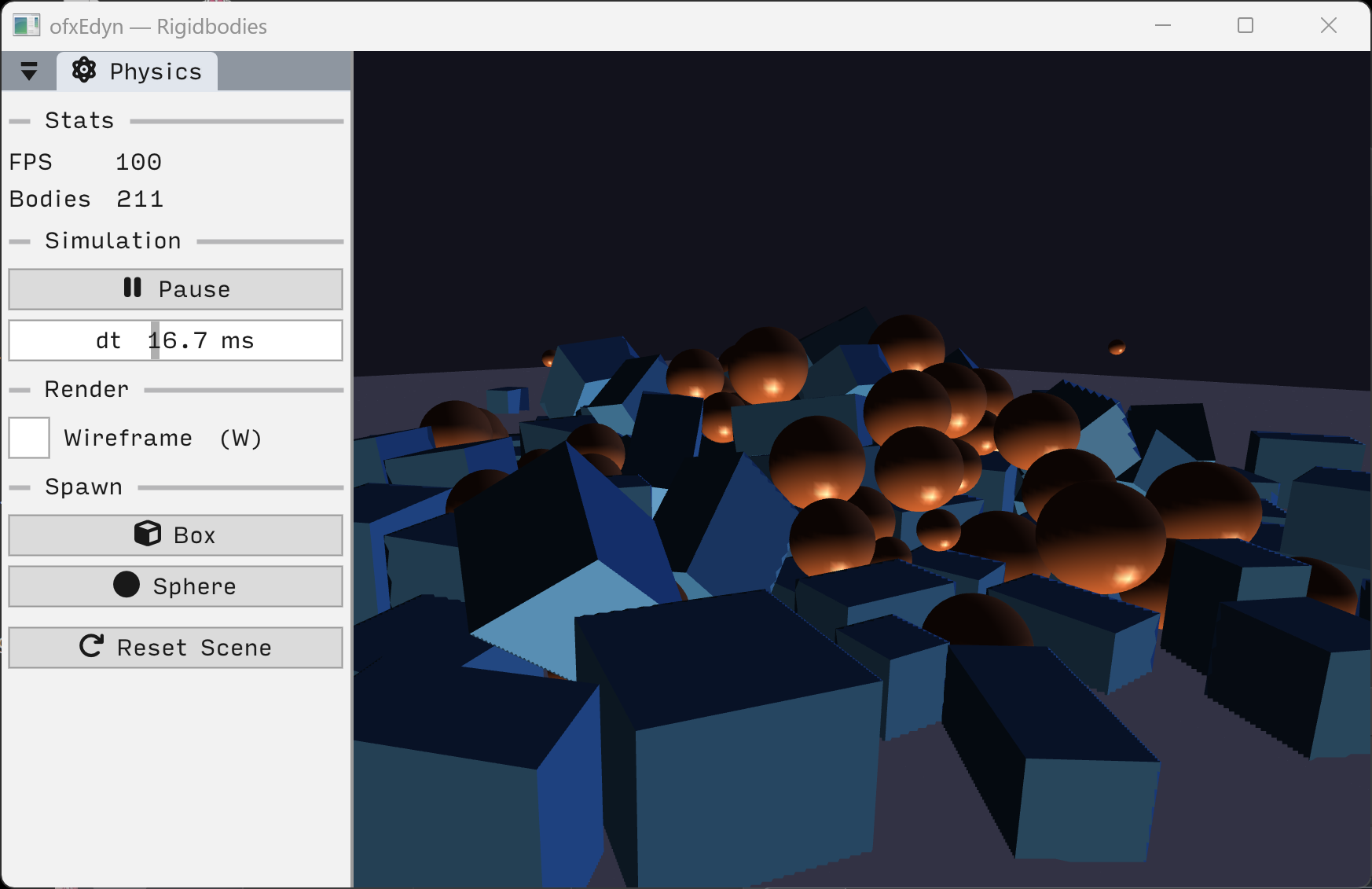

example-rigidbodies	Falling boxes and spheres; keyboard controls to spawn, reset and pause

License

Edyn is MIT licensed — see libs/edyn/LICENSE. ofxEdyn wrapper code is also MIT — see LICENSE.
