ofxSurfingAnimators

openFrameworks helper add-on for the _AWESOME_ ofxAnimatable from @armadillu. Some classes to faster integration into your _OF Apps / Add-ons_:

FloatAnimator, NoiseAnimator, PositionAnimator, ColorAnimator, EnvelopeAnimator and ToggleAnimator.

Screenshots

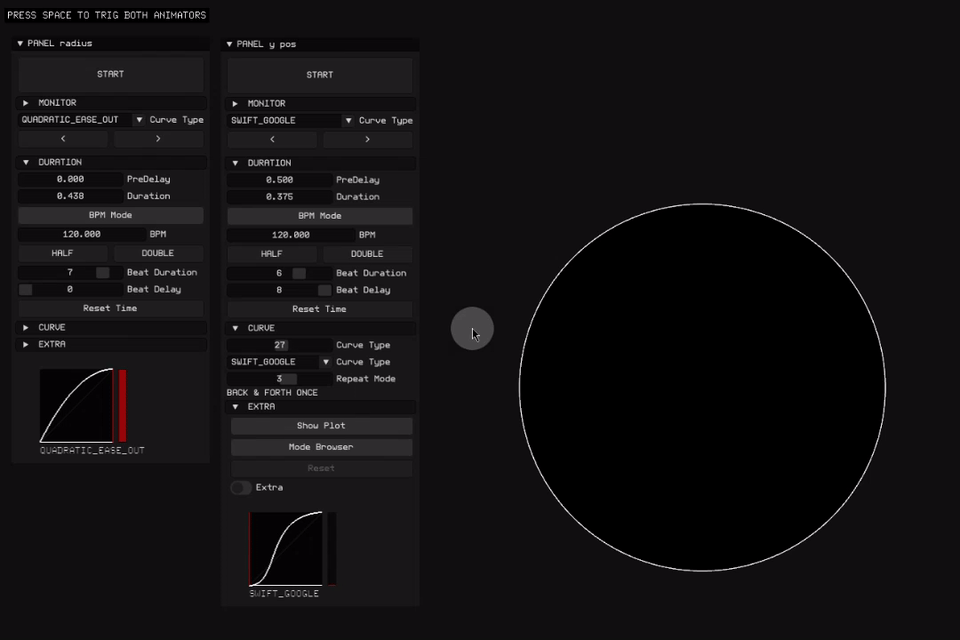

1_Float (2 x FloatAnimator)

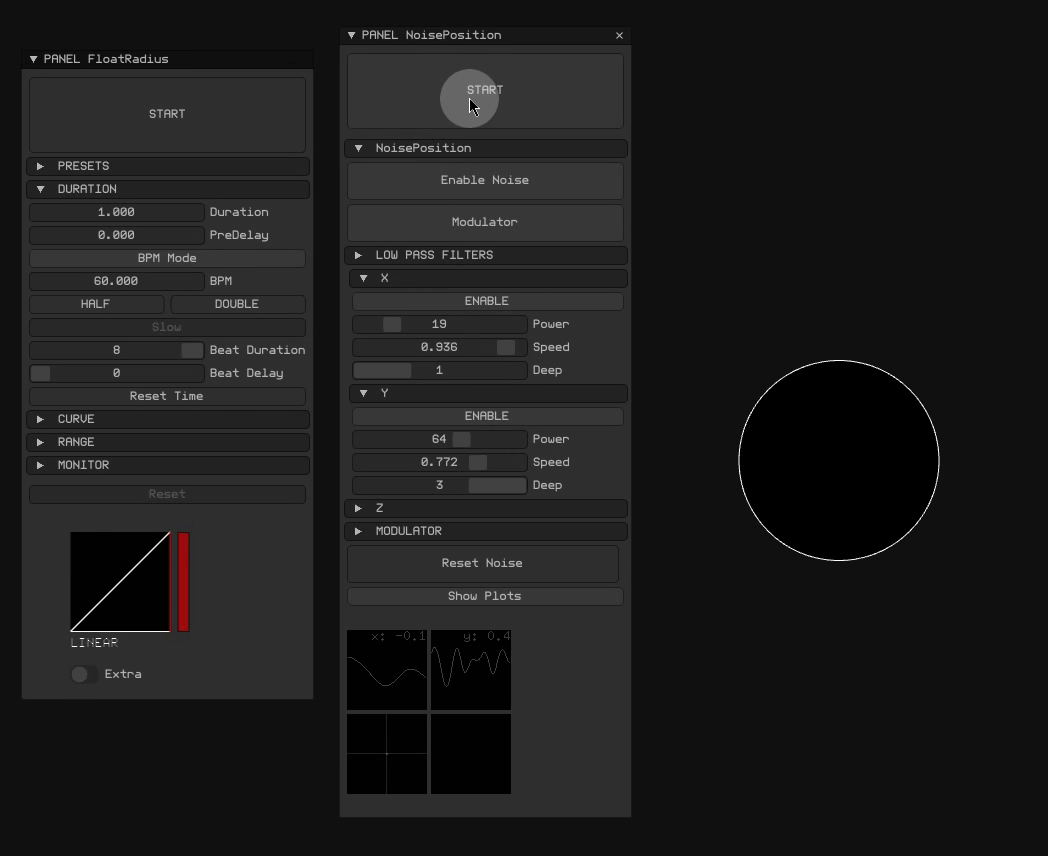

2_FloatNoised (FloatAnimator + NoiseAnimator)

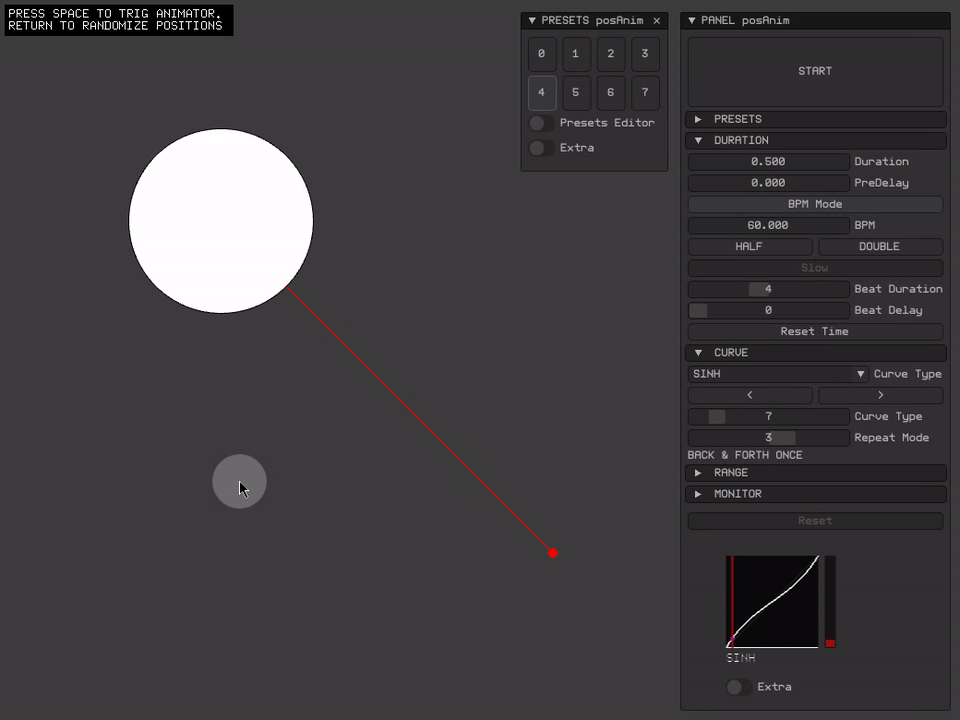

3_Point (PositionAnimator)

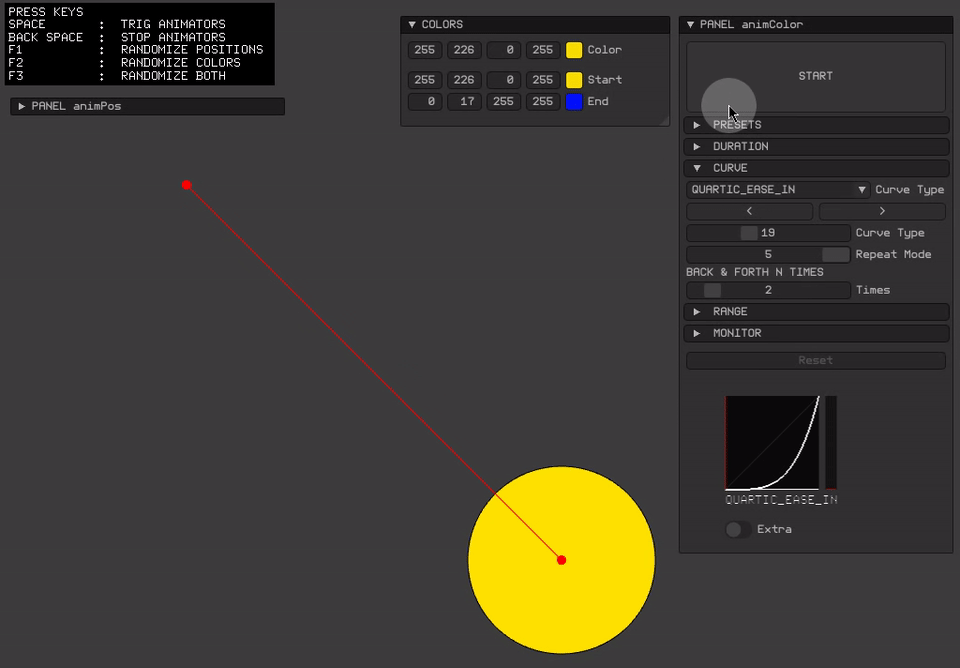

4_PointColored (PositionAnimator + ColorAnimator)

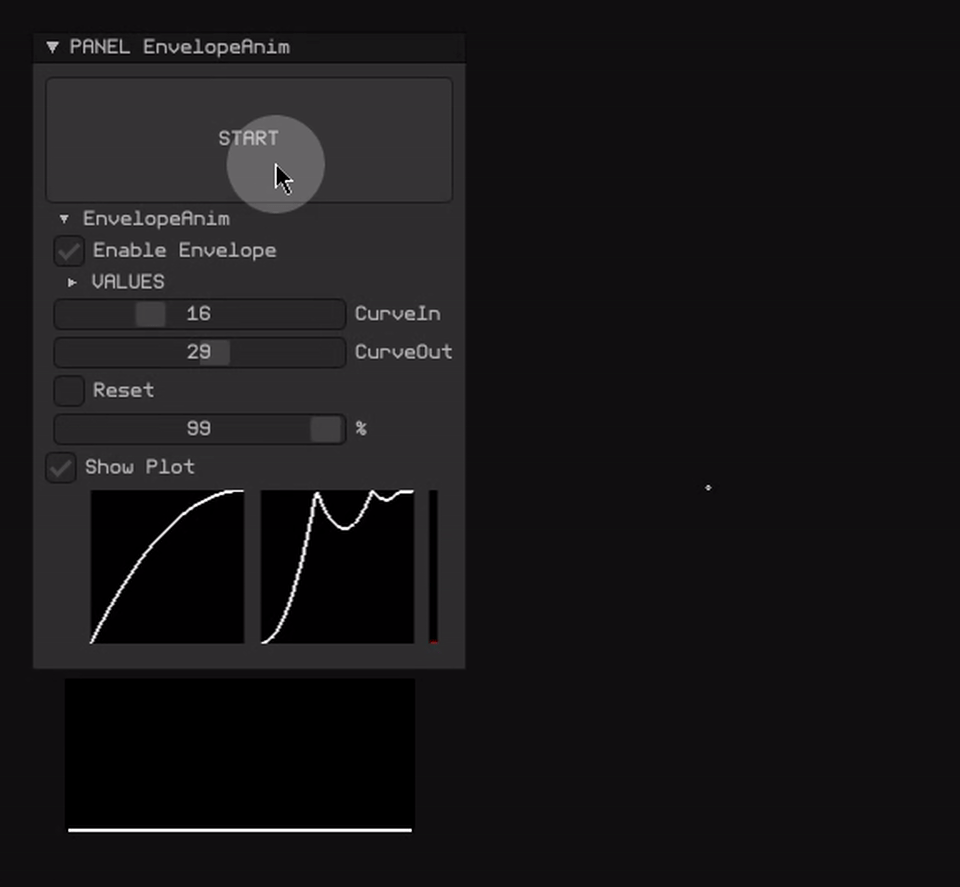

5_Envelope (EnvelopeAnimator)

Overview

openFrameworks helper addon for ``ofxAnimatable`

:  Classes:     FloatAnimator.h     PositionAnimator.h     NoiseAnimator.h (Envelope Modulated 3D Noise point + Filters)     ColorAnimator.h     EnvelopeAnimator.h (ASR envelope for a Float. Double independent curve types for Input/Output.)     ToggleAnimator.h



 Added ImGui based GUI.



 Internal settings handling: Auto Store-Recall.  Musical BPM based or absolute time scale.  Plotting realtime value curves.  Curves Preview drawing.  Setters for _Start/End_, time mode, duration and pre pause, curve tween types, loop modes, repeats ...etc.



Dependencies
  ofxSurfingHelpers    ofxSurfingImGui    ofxImGui  [ _Fork_ ]    ofxSurfingPresets  [ _Optional_ ]    ofxSurfingPlayer  [ _Optional_ ]



Already bundled into

`OF_ADDON/libs`

.   No need to add manually to the PROJECT GENERATOR!   ofxAnimatable   ofxHistoryPlot   ofxBiquadFilter  [ _Optional_. Used to Filter the Noise Point ]



Usage
 Look the Examples.
 ofApp.h

.c++ include "FloatAnimator.h"
 FloatAnimator animatorFloat;
ofApp.cpp
.c++ void setup() {    animatorFloat.setup(0.0f, 1.0f); }



void update() {    float value = animatorFloat.getValue(); }



void keyPressed(int key){    if (key == ' ') animatorFloat.start(); }

Tested Systems

Windows10 / VS2017 / OF ~0.11

Author

Add-on by @moebiusSurfing ( ManuMolina ). 2020. 2021

License

MIT License
