ofxSoundDevicesManager

github.com/moebiussurfing/ofxSoundDevicesManager · @moebiussurfing

OF 0.12 Releases Sound Audio GUI

Provides audio basics to any ofApp: Select sound APIs and devices. Sound File Player. Detector Engine. Waveform plotting. [ WIP Windows only ]

8 2 Last commit 3y ago Created 6y ago

README

ofxSoundDevicesManager

OVERVIEW

An openFrameworks add-on to provide audio basics to any ofApp. Easily handles and selects system sound devices. Currently working on Windows only, and for Input devices only. <details> <summary>NOTE</summary>

It will not work _out-of-the-box_ without ofxSurfingImGui, or using ofxGui instead. But could be fixed for that. Look on USE_OFXGUI_INTERNAL directive. For similar basic purposes (maybe for devices selector only) you can use ofxSoundDeviceManager from @roymacdonald instead of this add-on. </details> <details> <summary>WIP</summary>

ONLY MS WINDOWS YET. SHOULD ADD macOS AND MAYBE LINUX APIs ENGINES.
NOW I'AM USING THE MS DIRECTSHOW API. ASIO OR WASAPI HAS NOT BEEN HARDLY TESTED BUT IT SHOULD WORK.
CURRENTLY ONLY USING INPUTS YET. INTENDED TO BE USED MAINLY ON AN AUDIO ANALYZER.
DEVICES OUTPUT SELECTOR SEEMS NOT WORKING YET. IT USES THE DEFAULT DEVICE.
SOUND FILE PLAYER GOES THROUGH THE DEFAULT OUTPUT. BUT IT´S FEEDING THE DETECTOR ENGINE FINE.
COMPATIBLE WITH ofxSurfingAudioPlots FOR STYLED WAVEFORM PLOT.

</details>

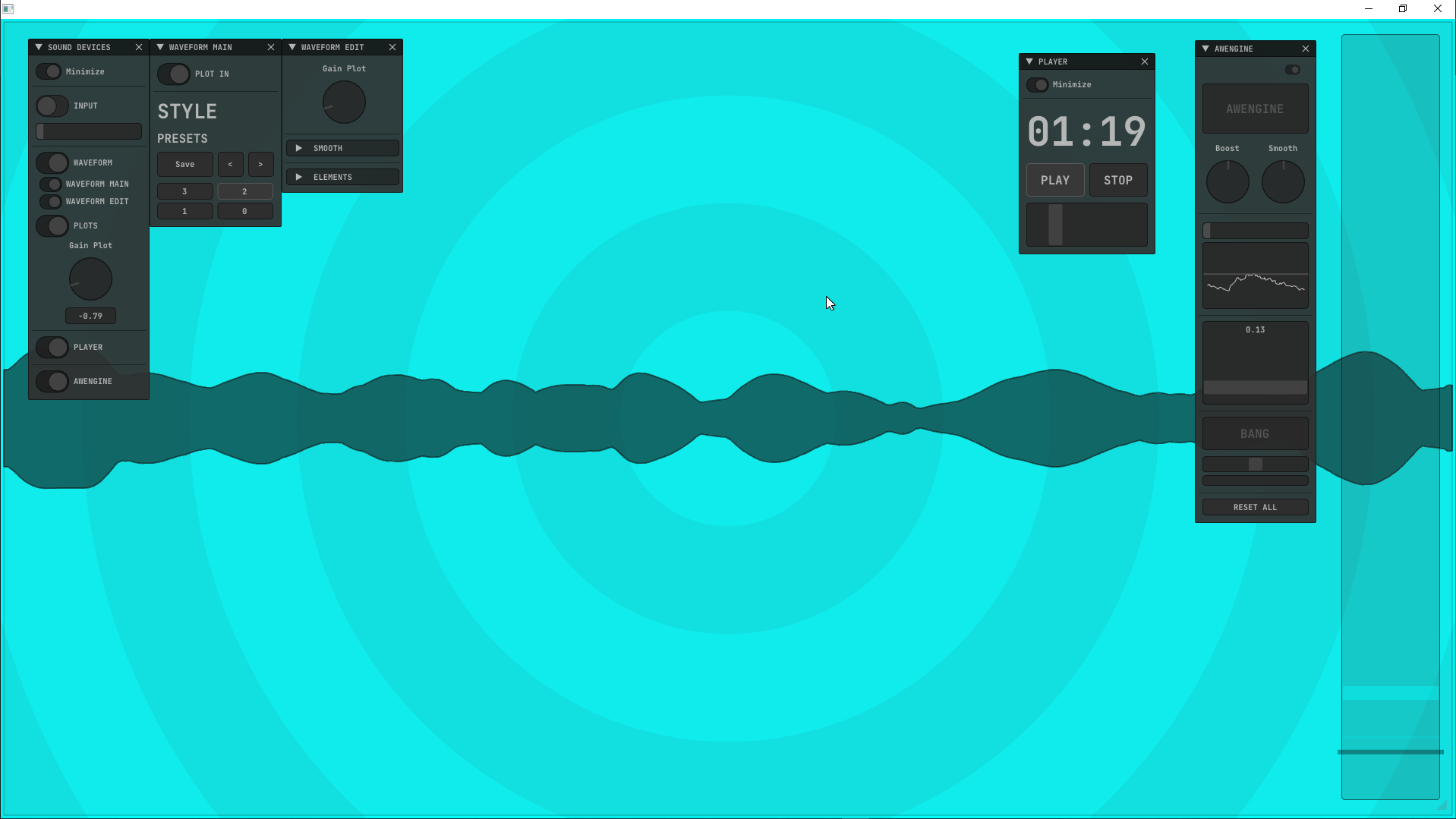

<details> <summary>SCREENSHOTS</summary>

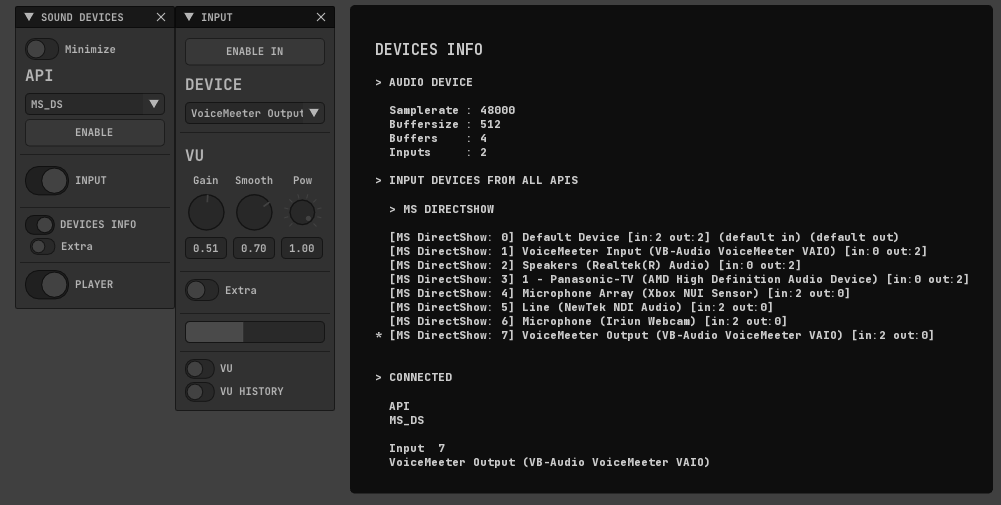

1-example_Basic

2-example_ofxSurfingAudioPlots

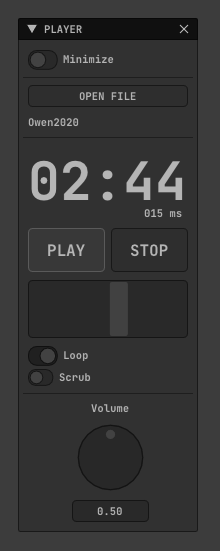

4-example_Player

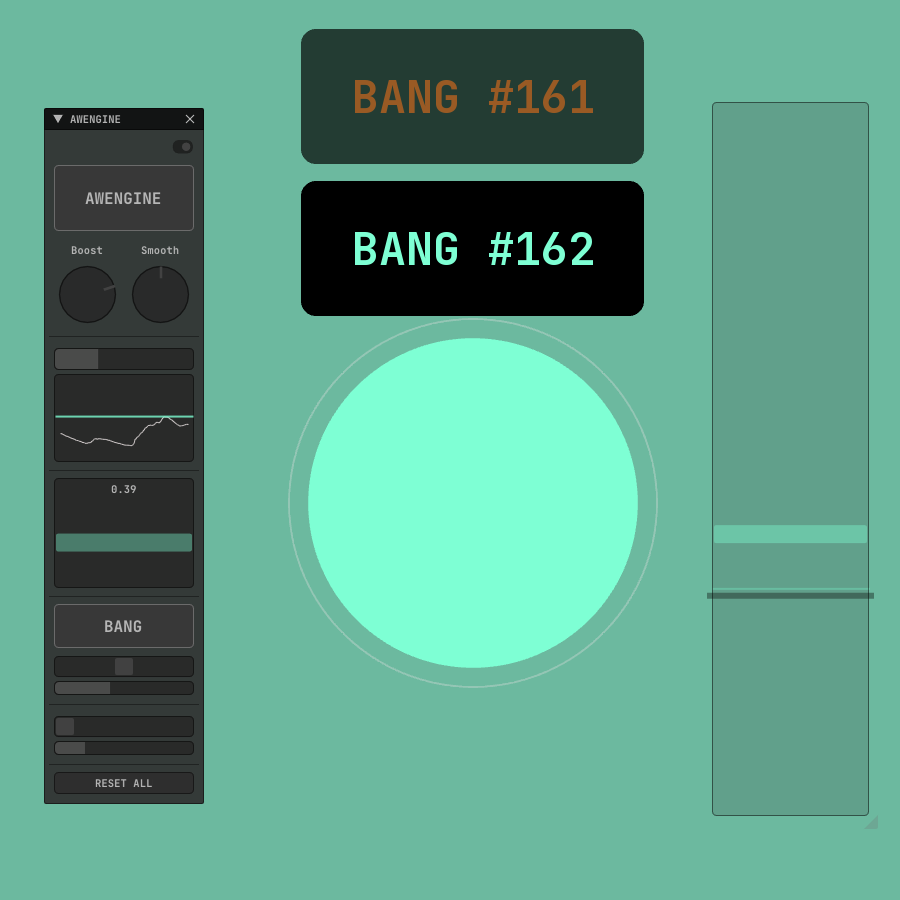

5-example_ExtrasDetector

Instagram VIDEO </details>

FEATURES

Provides audio basics to any ofApp.
Device selector:
Input and Output (WIP) audio devices.
All (MS Windows yet) sound APIs: DS/ASIO/WASAPI.
ImGui based GUI.
Intuitive VU / RMS.
Custom Smoother module.
Bangs detector using a threshold.
Gate with release timer. Bypasses upcomming bangs.
Custom auto pilot AWENGINE:
Auto timed callibrates threshold to last peak from history.
Testing scene to set detector.
New ImGui audio widgets:
Waveform plot with threshold line.
Big sertical slider for the threshold.
FFT.
Sound file player.
Compatible with styled waveform plot module.

<details> <summary>USAGE</summary>

ofApp.h

.cpp include "ofxSoundDevicesManager.h"




ofxSoundDevicesManager audioDevices;
ofApp.cpp
.cpp void ofApp::setup(){ 	// Set samplerate and buffer size 	audioDevices.setup(44100, 512); } void ofApp::draw(){ 	audioDevices.drawGui(); } void ofApp::audioIn(ofSoundBuffer& input) { 	audioDevices.audioIn(input); }

`` </details>

DEPENDENCIES

ofxSurfingImGui ofxImGui / Fork ofxSurfingHelpers ofxSurfingBox <details> <summary>OPTIONAL</summary> ofxSurfingWaveplots / for the example 2 ofxGui (oF core) </details>

<details> <summary>CURRENT SYSTEMS</summary>

Windows 10 / VS 2022 / oF 0.11+

</details>

<details> <summary>TODO</summary>

Improve settings using Port names instead of Port Numbers. Test and make it macOS-compatible. Merge some stuff from ofxSoundDeviceManager from @roymacdonald. (?) Make it ofxSoundObjects compatible. (?) </details>

<details> <summary>NOTES</summary>

Would crash when hot-changing the sound API DS/ASIO/WASAPI, but should wake up and reload fine the settings after restarting the app or by hardcoding devices. </details>

AUTHOR
An add-on by @moebiusSurfing (ManuMolina). 2020-2023.

LICENSE
MIT License*

Get this addon

HTTPS

SSH

View on GitHub · Open with Github Desktop · Download ZIP · All releases

Latest release

v0.2 published 3y ago

More intuitive VU / RMS.
Bangs detector using threshold.
Gate with release timer.
New audio widgets.
Testing scene.
New AWENGINE: autopilot mode for live auto tuning of detector parameters.
