ofxImGuiAuto

ImGui::Begin("Test");

IMGUI_AUTOS2(
    size, 1.0f, 10.0f, 1000.0f, "%.0f",
    angle, 0.1f,
    color,
    color_on,
    ENUM_(choise)
);
IMGUI_AUTO_SAVE_LOAD(save(), load());

ImGui::End();

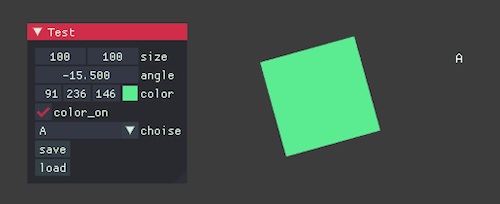

(see example for detail above.)

This addon provides macros named IMGUI_AUTO, IMGUI_AUTOS, IMGUI_AUTOS2, IMGUI_AUTO_SAVE_LOAD that automatically generate ImGui DragXXX controls and Save/Load buttons.

C++17 or higher is required.

Tested on oF v0.12.0 (win/mac)

Dependencies

• ofxImGui (develop branch)

Features

• Automatically generates ImGui (Drag) controls for:
• float
• int
• ofVec2f
• ofVec3f
• ofRectangle
• ofColor (ColorEdit4)
• bool (Checkbox)
• enum (Combo)

Example

using IMGUI_AUTOS / IMGUI_AUTO

class MyApp : public ofBaseApp {
public:
    ofVec2f position;
    ofVec2f size;
    float scale;
    ofVec2f offset;
    ofVec2f baseSize;
    float speed;
    float fadeIn;
    float duration;
    float fadeOut;
    bool enabled;

    void setup() {
        position = ofVec2f(0, 0);
        size = ofVec2f(100, 70);
        scale = 1.0f;
        offset = ofVec2f(10, 10);
        baseSize = ofVec2f(50, 50);
        speed = 1.0f;
        fadeIn = 0.5f;
        duration = 1.0f;
        fadeOut = 0.5f;
        enabled = true;
        load();
    }

    void save(){
        // something to save
    }

    void load(){
        // something to load
    }

    void drawGui() {
        ImGui::Begin("My Controls");
        IMGUI_AUTOS(
            position,
            size,
            scale,
            offset,
            baseSize,
            enabled
        );
        IMGUI_AUTO(speed, 0.1f);
        IMGUI_AUTO(fadeIn, 0.1f);
        IMGUI_AUTO(duration, 0.1f);
        IMGUI_AUTO(fadeOut, 0.1f);
        IMGUI_AUTO_SAVE_LOAD(save(), load(), "save", "load");

        // or short-hand:
        // IMGUI_AUTO_SAVE_LOAD(save(), load());

        ImGui::End();
    }
};

using IMGUI_AUTOS2 (smarter)

void drawGui() {
    ImGui::Begin("My Controls");
    IMGUI_AUTOS2(
        position,
        size,
        scale,
        offset,
        baseSize,
        enabled,
        speed, 0.1f,
        fadeIn, 0.1f,
        duration, 0.1f,
        fadeOut, 0.1f
    );
    IMGUI_AUTO_SAVE_LOAD(save(), load(), "save", "load");

    // or short-hand:
    // IMGUI_AUTO_SAVE_LOAD(save(), load());

    ImGui::End();
}

IMGUI_AUTOS2 Limitations

• In order to use enum in IMGUI_AUTOS2, ENUM_(enum) is needed.
• There is runtime overhead.

IMGUI_AUTOS	IMGUI_AUTOS2
enum	:white_check_mark:	:white_check_mark: (use ENUM_())
parameters	:x: (use IMGUI_AUTO)	:white_check_mark: [^1]
args limit	14	- (infinite)
runtime overhead	none	low

[^1]: rvalue only supported (lvalue = named value is treated as a label). If you want to use variable for parameter value (speed/min/max/flags), use IMGUI_AUTO or IMGUI_AUTOS instead.

[!WARNING]
If you have GUI flickering when using IMGUI_AUTO2() on your app, please read below.

[!NOTE]
IMGUI_AUTO2() macro string is parsed on first call in run-time, and cached statically. This may make GUI flickering in some special case.

If you won't cache it,
- use IMGUI_AUTOS2_NO_CACHE() (short-hand: IMGUI_AUTOS2_NC() ) macro instaed
- or #define IMGUI_AUTO_NO_CACHE before #include "ofxImGuiAuto.h".

for save/load

You can use any serializations as you like.

I recommend ofxJsonUtils and ofxJsonUtilsUtils.

ofxJsonUtilsUtils's JSON_FUNCS syntax will fit well IMGUI_AUTOS or IMGUI_AUTOS2.

JSON_FUNCS(name, age, life, score);

[!NOTE]
If you need deep integration with JSON, consider ofxImGuiJson as an alternative.

License

0BSD

(Please note that magic_enum is MIT License.)
