ofxGraph is a simple, easy and quick graph add-on for openframeworks.
Branches ahead of main
These branches have commits not yet on main — could be unmerged fixes or work in progress worth a look.
README
ofxGraph: a simple plotter for openframeworks
Description

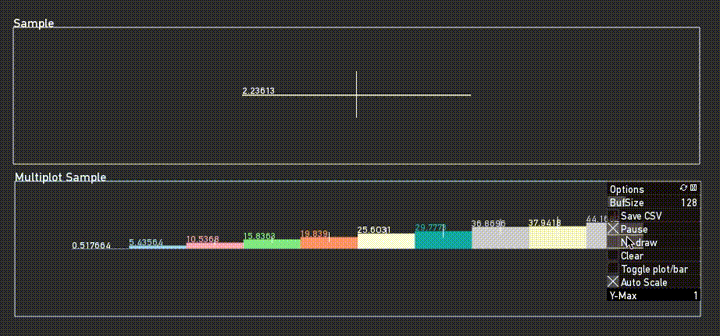

ofxGraph is a graph plotting addon for openframeworks.1. single/multiple plot 2. Manual adjustable graph size and position 3. detailed plot data information 4. Adjustable buffer size 5. CSV file export with a save dialog 6. Automatic saving(position and size). except for ofxGui settings. 7. New: Added Bar Graph Mode. you can change graph mode to bar or plot.
Compatible
openframeworks: v0.11.2 macOS: 12.0.1(Monterey)Usage
1. Copy ofxGraph/Example/bin/data/ofxGraph directory to your_OF_project_directory/bin/data 2. Below is a minimal code to use ofxGraph. ``c++ void ofApp::setup(){
// ofxGraph Init graph.setup("sample"); graph.setDx(1.0); // which means delta of time graph.setColor(ofColor::white); // ofColor(255,255,255) } void ofApp::update(){ // plot a random data on a each frame graph.add(ofRandom(-100,100)); }

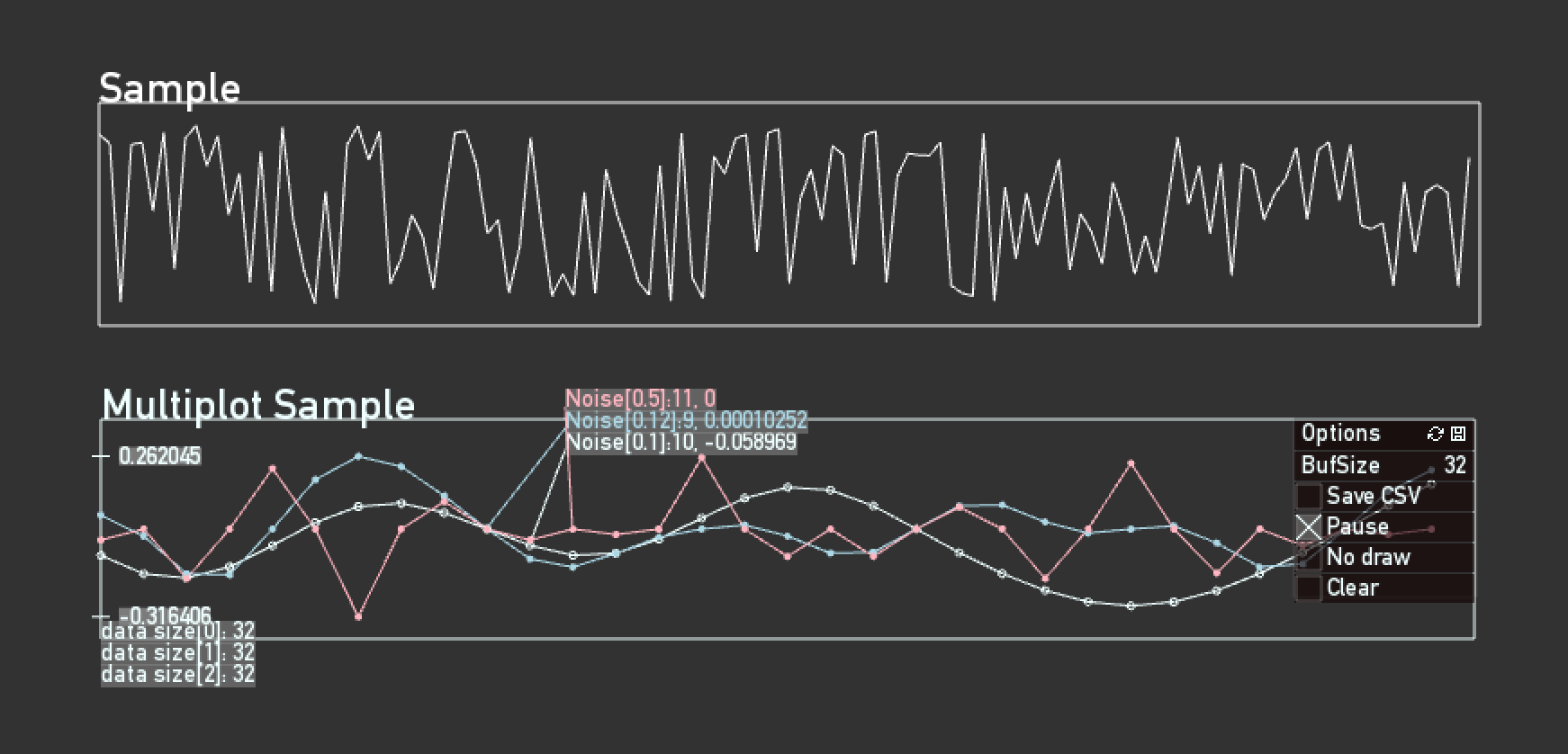

void ofApp::draw(){ ofBackground(50,50,50); graph.draw(); } ``See Example for more detailed.
