Addon approximating cubic bezier curves with biarc segments (2D, based on the bezier2biarc implementation).
Branches ahead of master
These branches have commits not yet on master — could be unmerged fixes or work in progress worth a look.
README
Bezier curve approximation algorithm with biarcs
Synopsis
This is more or less a one-to-one implementation of https://github.com/domoszlai/bezier2biarc for openFrameworks.Installation
You can install this as any other openFrameworks addon.Implementation
The algorithm is explained by Domoszlai in this blog post: http://dlacko.org/blog/2016/10/19/approximating-bezier-curves-by-biarcs/.Usage
Create a number of cubic bezier paths in openFrameworks.Convert them to BiArcs by calling ofxCubicBezierToBiArc::ApproxCubicBezier().
Limitations
The code only works in 2D space. It will not check if the input actually is cubic beziers, and it has not been tested on other inputs.Screenshots

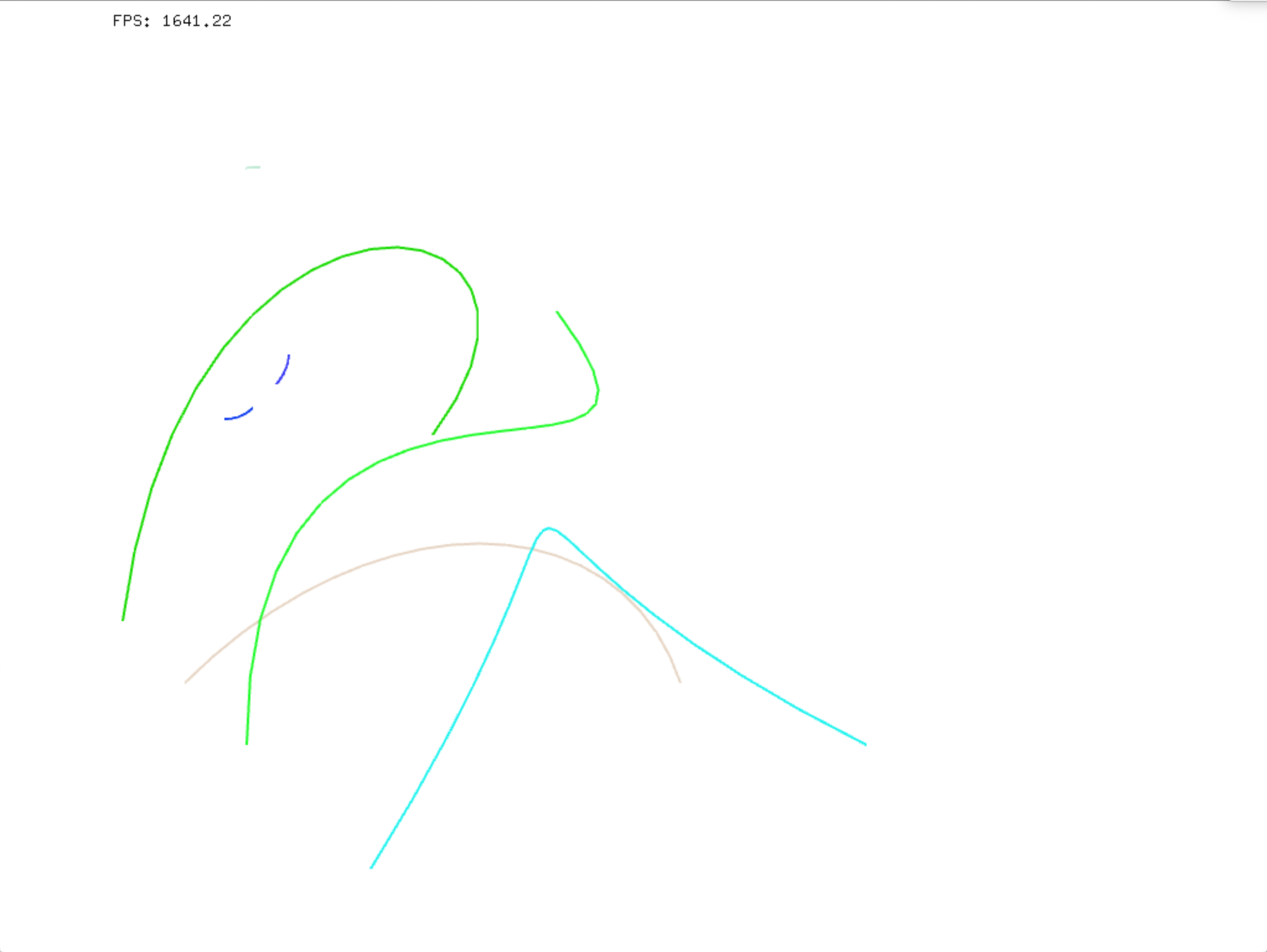

Original paths

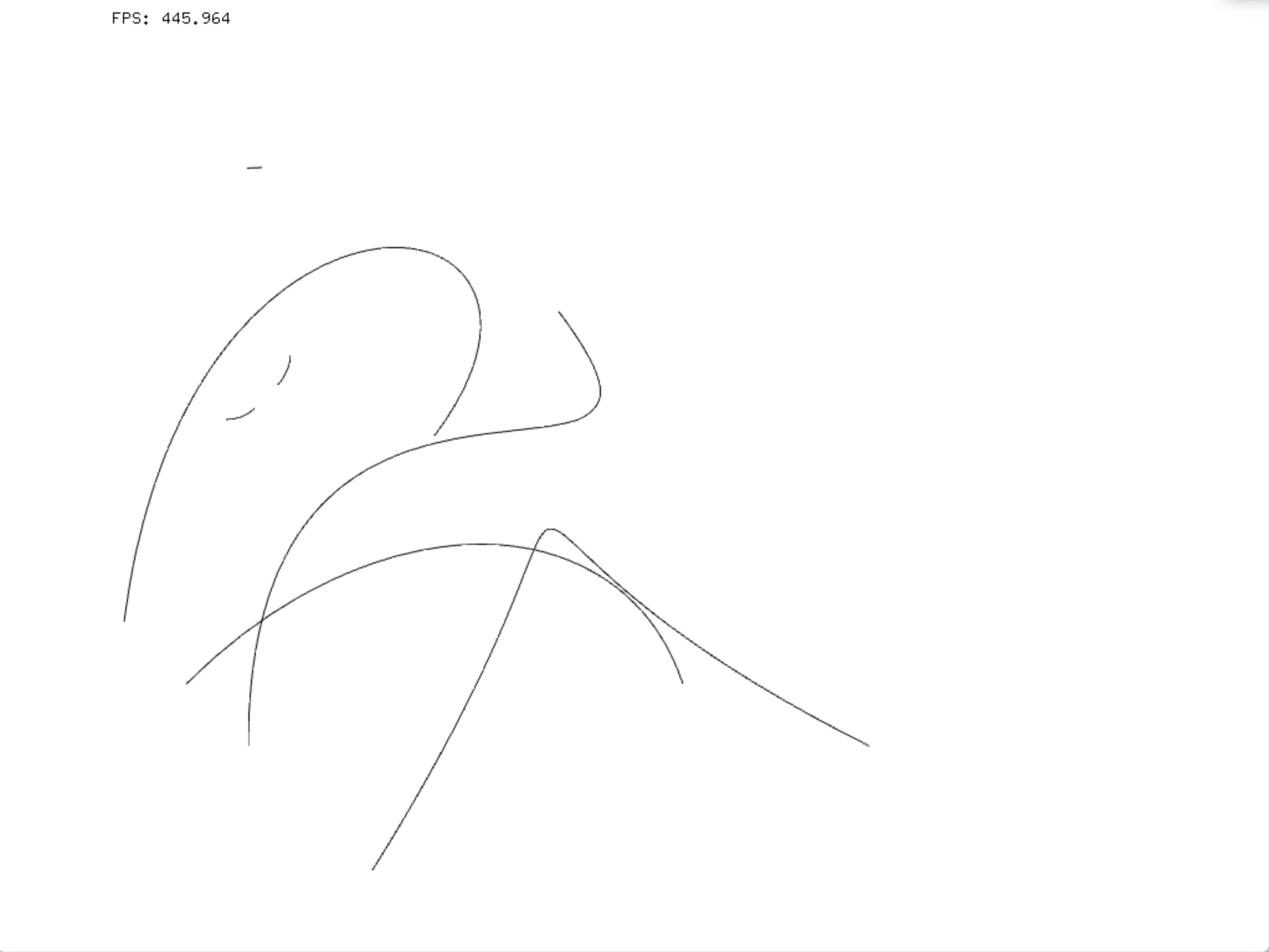

BiArc paths

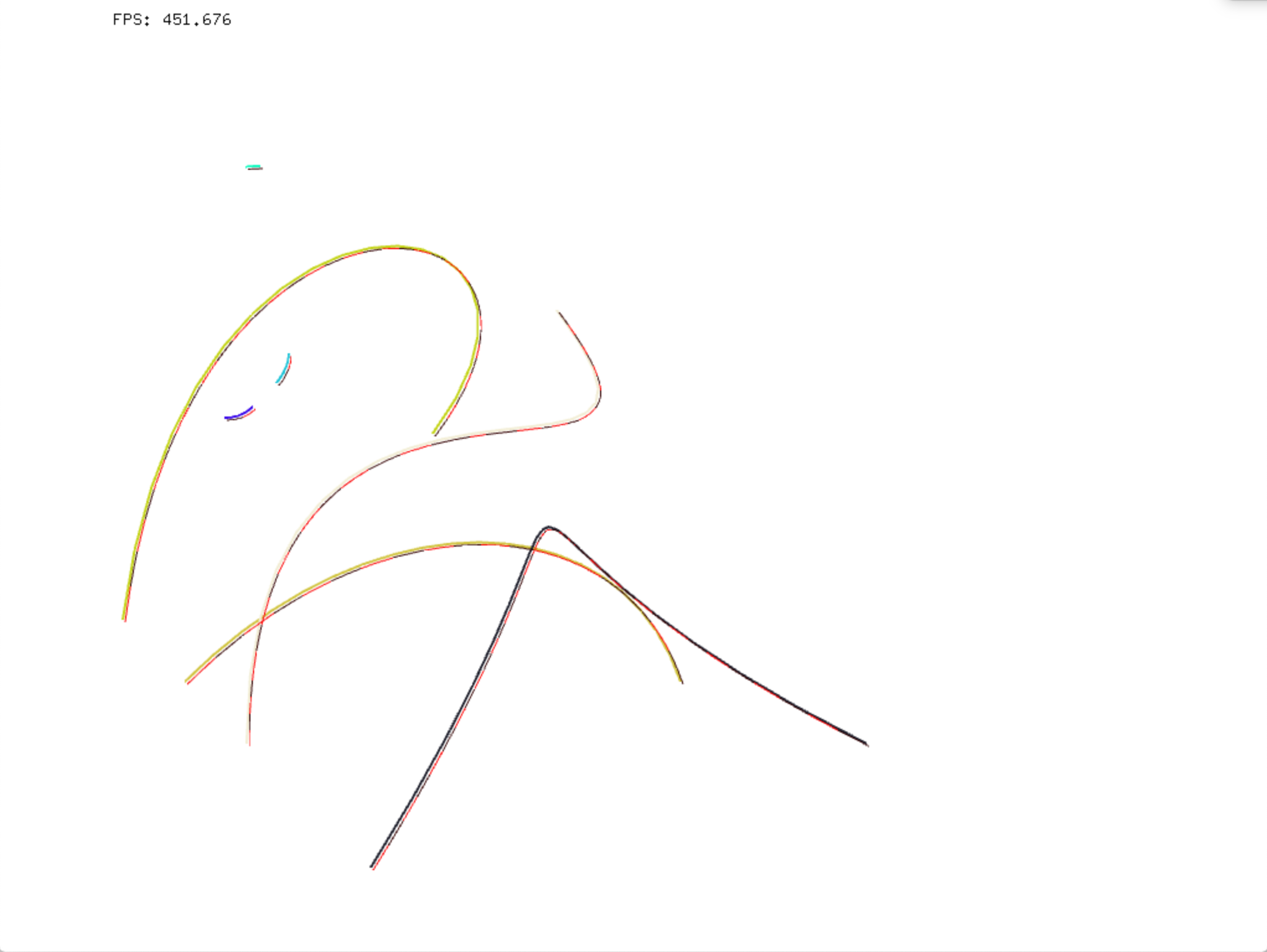

Overlay of original and BiArcs.(here the BiArcs are translated by ofPoint(1,1) to make them more visible)
